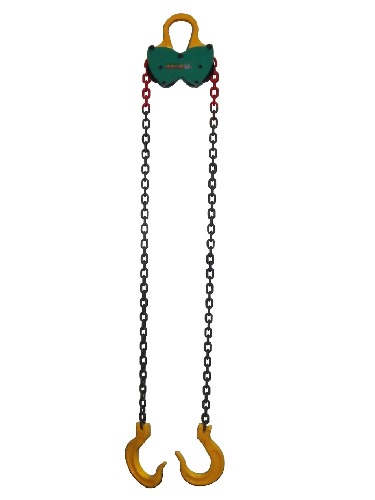

Nobunaga's Arms - Pre-Tension Chain Sling
Lifting Product/Pre-Tension Chain Sling
This product is used for the lifts of the machine instrumentation.
Working load changes by method to lift and lifting angle.
Please confirm method to lift and lifting angle.
And you must use it in less than working load.
If you use it across the working load, the danger such as the early abrasion of the product, the accident resulting in injury or death, the damage of neighboring articles will occur.
Working load changes by method to lift and lifting angle.
Please confirm method to lift and lifting angle.
And you must use it in less than working load.
If you use it across the working load, the danger such as the early abrasion of the product, the accident resulting in injury or death, the damage of neighboring articles will occur.
1. Product Features
・Hoisting operations can be performed quickly, securely and safely.
・Once the hooks are hanged on pallets, they hardly come off. That means this product is very useful as your work can be performed easily.
・When the pallets are landed on the ground, the hooks do not come loose or come off easily.
・Objects can be lifted smoothly at the time of lifting work because tensile force is not applied to them suddenly.

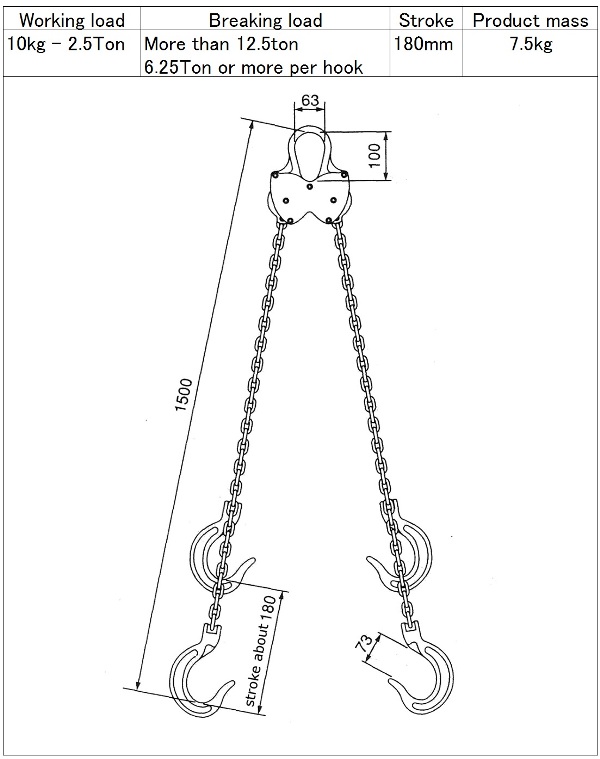

2. Specifications of the product
3. Terms of use
・Heat resistance
Please use this product in temperature less than +250 degree Celsius.

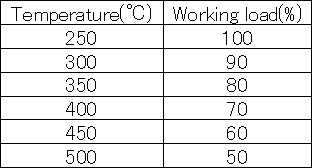

In the case of temperature more than +250 degree Celsius, please refer to the right chart.
・Cold resistance
At the place (-10 degrees Celsius or less) where remarkably has low temperature, strength for the impact strength becomes remarkably weak.
Please handle it carefully not to take the shock.
・Chemical resistance
Please do not use the acid or the alkali.
In addition, influence varies according to the kind of the chemical.
Please talk beforehand to our Development Division.
・Safety factor
The breaking load for the working load of the vertical lifting is more than 5 times.
・Lifting angle
By the method to lift and the lifting angle, working load changes.
Please use it after having understood the working load.
・Others
In the work which vibration is transmitted through, please always make working load 80%.
In the work which vibration is transmitted through, please always use it in 80% of working load.
Please avoid high humidity.
At the place (-10 degrees Celsius or less) where remarkably has low temperature, strength for the impact strength becomes remarkably weak.
Please handle it carefully not to take the shock.
・Chemical resistance
Please do not use the acid or the alkali.
In addition, influence varies according to the kind of the chemical.
Please talk beforehand to our Development Division.
・Safety factor
The breaking load for the working load of the vertical lifting is more than 5 times.
・Lifting angle
By the method to lift and the lifting angle, working load changes.
Please use it after having understood the working load.
・Others
In the work which vibration is transmitted through, please always make working load 80%.
In the work which vibration is transmitted through, please always use it in 80% of working load.
Please avoid high humidity.

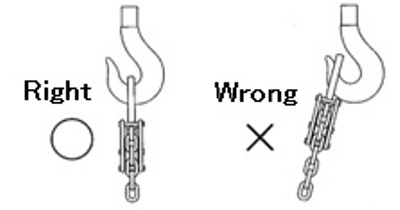

4. Installation

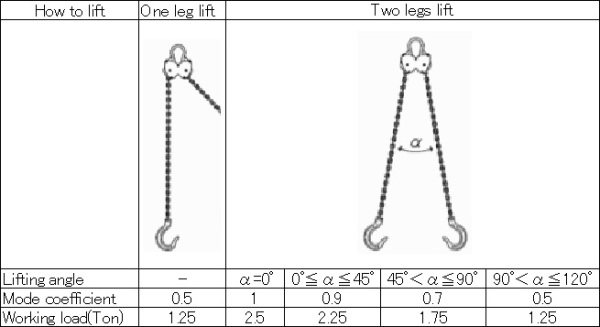

5. Method to Lift and Working Load Limit

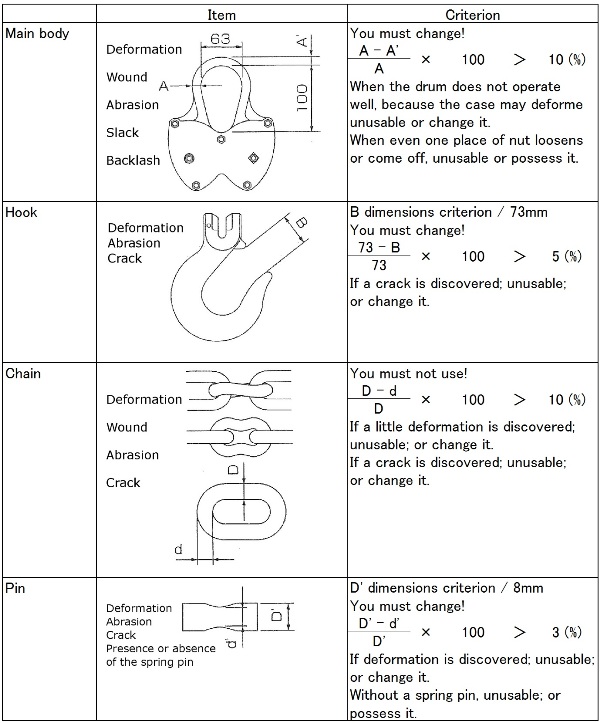

6. Standard of Inspection
WARNING
・Never apply more load than Working Load Limit (2.5Ton).
・Don't hold the red part of the chain.
・Don't give the big impact.
・Don't disassemble.
・Working load limit changes by method to lift and the lifting angle.
・Working load limit decreases at the high temperature place.
・Please handle this product carefully at the place of the cryogenic temperature.
・When this product gets wet with water and other liquids, please wipe it off quickly.
・Regardless of the number of the use frequency, please carry out check before work.
Read and understand these instructions before using Pre-Tension Chain Sling.
